SUAC-170

Table diameter provides a choice of Ø170mm.
Employs high rigidity, extra large radial and axial bearing.
Upon request, models with table diameter of Ø170 and Ø210mm can be equipped with Japanese made worm/worm gear.
Equipped with special labyrinth type multi-piece disk brake that provides multi-surface braking. Big area design effectively increases clamping force. The table structure eliminates table surface floating problem.
Big hole design makes machining more convenient. Manufactured from high quality, durable cast iron. Increased body thickness increases load resistance capability. Large through-hole diameter. High strength, heavy cutting resistance as well as high precision.
Upon request, models with table diameter of Ø170 and Ø210mm are available with hydraulic brake.
Various sheet metal guards are available to suit various brands of motors. Contact us for detail.

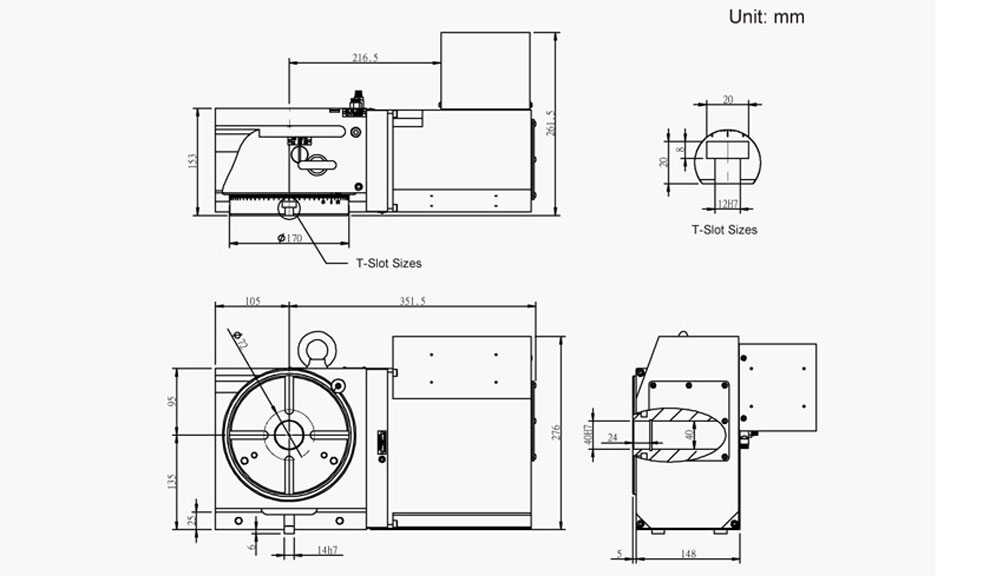

Table diameter			mm	Ø170
Center hole diameter			mm	Ø40H7
Through-hole diameter			mm	Ø40
Height of center (Vertical)			mm	160
Height of table (Horizontal)			mm	-
T-slot width of table			mm	12H7
Width of guide block			mm	14h7
Min. increment			deg.	0.001
Indexing accuracy			sec.	20
Repeatability			sec.	4
Clamping torque	Air 5~7kg/cm²		N.m	200
	Hyd. 20~30kg/cm²		N.m	400
Servo motor model	FANUC		-	α4i / ß8is
	Mitsubishi		-	HF-54S/HF-104S
Teeth ratio			-	1 : 90
Max.table speed(FANUC a motor)			rpm	44.4
Allowable load capacity	Vertical		kg	85
	Horizontal		kg	160
	With tailstock		kg	160
Allowable cutting force(Clamped status)	F		N	11500
	FxL		N.m	1000
	FxL		N.m	300
Allowable torque of worm gear			N.m	260
Allowable inertia		J=W.D²/8	kg.m²	0.58
Weight (Motor excluded)			kg	50
